MSI

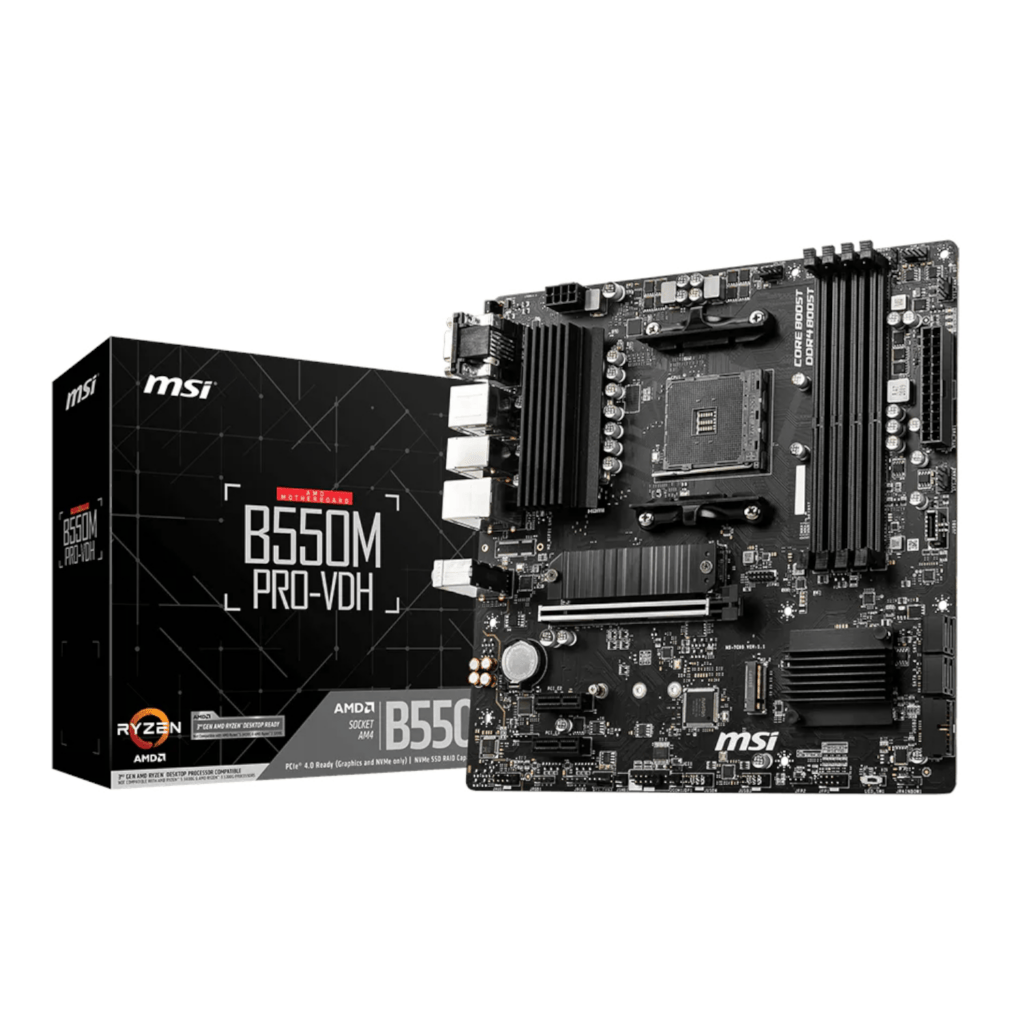

MSI B550M PRO-VDH AM4 M-ATX Motherboard
The MSI B550M PRO-VDH is a Micro-ATX motherboard for AMD Ryzen 5000, 4000 G-Series, and 3000 Series CPUs. It features PCIe 4.0 M.2 storage with thermal shielding, support for up to 128 GB DDR4 memory, triple display outputs, and Flash BIOS without a CPU. Category: AMD motherboards. Availability: currently out of stock. Warranty: 36 Months. Price: R 2 399,00 (ZAR). Shop online at supplyd.co.za.
SKU: B550M PRO-VDH
Why We Chose This
We selected the MSI B550M PRO-VDH for its excellent balance of features and value. It offers PCIe 4.0 M.2 storage with thermal shielding, support for up to 128 GB of DDR4 memory, and triple display outputs—all in a compact M-ATX form factor. This board is perfect for builders who want a reliable foundation for a Ryzen 5000 build without paying a premium for features they won't use.
We'll notify you via WhatsApp when stock arrives
Product Description
🤖 AI-assisted summary — verify key specifications in the full supplier specifications below.
The MSI B550M PRO-VDH is a Micro-ATX motherboard designed for system builders seeking a dependable, feature-rich AMD platform without unnecessary extras. Powered by the AMD B550 chipset and AM4 socket, it supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors (excluding Ryzen 5 3400G and Ryzen 3 3200G), offering a wide range of CPU choices for productivity and everyday computing.
With four DDR4 memory slots, you can install up to 128 GB of RAM in dual-channel configuration, and support for speeds up to 4400 MHz via A-XMP OC mode lets you push performance further. Two M.2 slots provide flexible storage options: the first runs at PCIe 4.0 x4 from the processor, while the second uses PCIe 3.0 x4 from the chipset. Both are equipped with M.2 Shield Frozr heatsinks to keep SSDs cool under sustained workloads, preventing thermal throttling and ensuring consistent performance.
The board includes four SATA 6 Gb/s ports for additional storage, a PCIe 4.0/3.0 x16 slot for graphics cards, and a generous rear I/O panel with VGA, DisplayPort, and HDMI 2.1 outputs, enabling triple-display setups. The Flash BIOS button allows you to update the BIOS without installing a CPU, making system assembly and upgrades easier than ever. This motherboard is a solid foundation for a reliable, high-performance AMD build.
📋 View full supplier specifications →
AMD AM4 socket with B550 chipset | PCIe 4.0 M.2 storage with thermal shielding | Up to 128 GB DDR4 memory | Triple display output | Flash BIOS without a CPU installed
The MSI B550M PRO-VDH is a Micro-ATX motherboard built for system builders who want a reliable, feature-complete AMD platform without unnecessary complexity. Paired with the AMD B550 chipset and AM4 socket, it supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors (excluding Ryzen 5 3400G and Ryzen 3 3200G), giving you a broad range of CPU options for productivity and everyday computing builds. Four DDR4 memory slots accommodate up to 128 GB of RAM in dual-channel configuration, with support for speeds up to 4400 MHz via A-XMP OC mode for those who want to push performance further. Two M.2 slots — the first running PCIe 4.0 x4 from the processor, the second PCIe 3.0 x4 from the chipset — are complemented by M.2 Shield Frozr heatsinks that keep SSDs cool under sustained workloads, preventing thermal throttling. Four SATA 6 Gb/s ports, a PCIe 4.0/3.0 x16 slot, and a generous rear I/O panel including VGA, DisplayPort, and HDMI 2.1 outputs round out a well-equipped board ready for a compact, capable build.
Features
- AMD AM4 socket supports Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors
- PCIe 4.0 x4 M.2 slot (M2_1, from CPU) and PCIe 3.0 x4 M.2 slot (M2_2, from chipset) — both with M.2 Shield Frozr thermal coverage
- Four DDR4 slots supporting up to 128 GB, with speeds up to 4400 MHz (OC) in dual-channel
- Triple display output: VGA, DisplayPort, and HDMI 2.1 — each supporting up to 4K where the CPU's integrated graphics allow
- Core Boost and DDR4 Boost technologies with a 2 oz thickened copper PCB for improved power delivery and signal integrity
- Flash BIOS Button enables BIOS updates via USB without a CPU, memory, or graphics card installed
- Realtek ALC892/ALC897 7.1-channel HD audio codec for clear, detailed sound output
- Realtek 8111HN Gigabit LAN for stable 1 Gbps wired connectivity
Specifications
- Socket: AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- Memory Type: DDR4
- Memory Slots: 4
- Max Memory: 128GB
- M.2 Slots: 2
- PCIe Version: PCIe 4.0 / PCIe 3.0
- LAN Speed: 1 Gbps
- Rear USB Ports: 4x USB 3.2 Gen 1 5Gbps Type-A,2x USB 2.0 Type-A
- Colour: Black
- Product Dimensions: 24.4 x 24.4 cm
What's in the Box
- MSI B550M PRO-VDH AM4 M-ATX Motherboard x1
- SATA Cables x2
- I/O Shield x1
- Quick Installation Guide x1
Frequently Asked Questions
Which CPUs are compatible with the MSI B550M PRO-VDH?+
It supports AMD Ryzen 5000 series, 4000 G-Series, and 3000 Series desktop processors, excluding Ryzen 5 3400G and Ryzen 3 3200G. Always check the latest CPU compatibility list on MSI's website.
How do I update the BIOS without a CPU?+
Use the Flash BIOS button on the rear I/O panel. Download the BIOS file to a USB drive, insert it into the designated USB port, and press the button. The board will update the BIOS automatically.
Can I use multiple displays with this motherboard?+
Yes, it has VGA, DisplayPort, and HDMI 2.1 outputs, allowing you to connect up to three monitors simultaneously, provided your CPU has integrated graphics.
What is the maximum memory speed supported?+
It supports DDR4 memory up to 4400 MHz (OC) via A-XMP, with a maximum capacity of 128 GB across four slots.
Does this motherboard support PCIe 4.0?+
Yes, the first M.2 slot supports PCIe 4.0 x4, and the PCIe x16 slot supports PCIe 4.0 (with compatible CPUs). The second M.2 slot is PCIe 3.0 x4.
